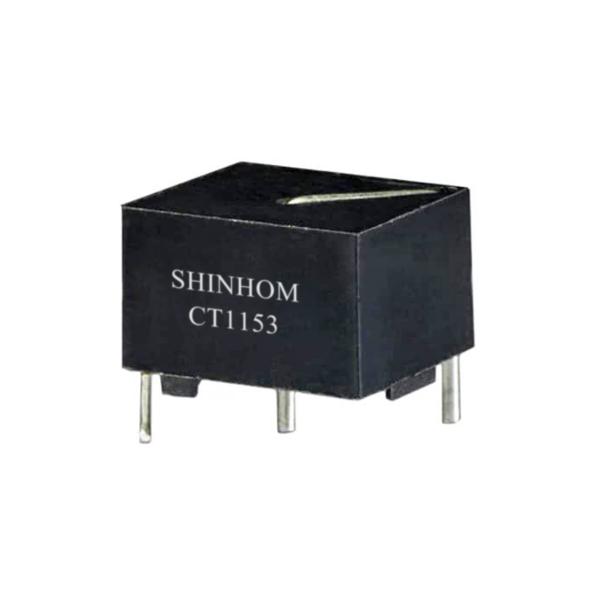

1:200 Current Sense Transformer Encapsulated PCB Mounting

Name: 1200 Current Sense Transformer Encapsulated PCB Mounting
Brand: Shinhom
Price: 1 USD

Best 1:200 Current Sense Transformer Encapsulated PCB Mounting wholesale

Brand Name : Shinhom

Model Number : CT1153 Series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Turns ratio : 1:50 1:100,1:150,1:200,1:300,1:500,1:1000

Max. input : 25A

Encapsulation : Epoxy

installation : PCB mounting

Insulation voltage : 4000V,1mA,60S

Temperature range : -40℃ to +125℃

Contact Now

CT11 Series PCB Mounting 1:200 Current Sense Transformer, Encapsulated PCB Current

FEATURES:

* High frequency current transformers for SMPS appllications
* High-permeability ferrite current transformers
* Low-profile current transformers
* PCB mount current transformers
* Reliable linear performance transformers
* Turns Ratio: 1:50 1:100,1:150,1:200,1:300,1:500,1:1000 available
* Many differennt kinds of structure and style for your selection.
* Custom-made are welcome.

* Current sense transformers provide output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies
* 25A Rated primary current(40A Max)

* Insulation resistance: 500V DC >100MΩ
* Hi-Pot : 4000V 1mA 60S

Frequency Range	50kHz ~ 500kHz
Type	Invasive
Current Rating (Amps)	125 mA
Inductance	76 mH
ET (Volt-Time)	700VµS
Turns Ratio - Primary:Secondary	1:200
DC Resistance (DCR)	4.5Ohm

1:200 Current Sense Transformer Encapsulated PCB Mounting

Notes: Product specifications can be customized
